03453LS2HXL
FUSE HLDR CART 250V 20A PNL MNT
Similar Components
01220093Z
30A 250V Cartridge Fuse Clip, PC Pin, Through Hole, Copper
39703500000
Radial Lead Free Fuse, 125V 350mA, Through Hole, -40°C to 85°C
03452HS7X
250V 10A Panel Mount Fuse, Illuminated, Lead Free, -40 to 85°C
0LEC00ABX
600V 30A Free Hanging Fuse, Illuminated, Copper Contact, 10mm x 38mm
03450121X
Fuse Holder
04200001UR
Fuse Chip Slow Blow Acting 1A 250V SMD Solder Pad 7.24 X 4.32 X 3.05mm T/R CSA
About 03453LS2HXL

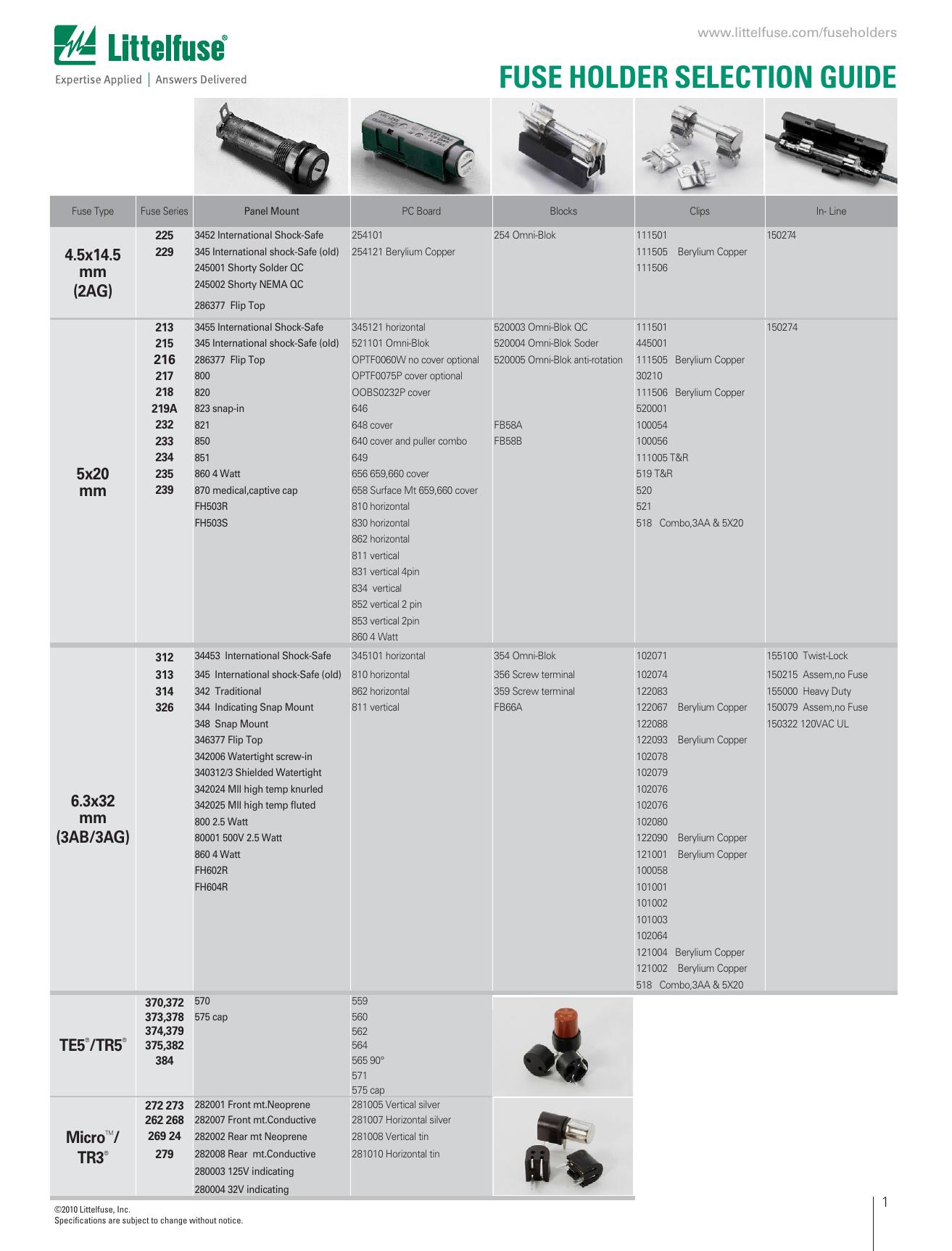

The Littelfuse 03453LS2HXL Fuses Fuse Holders datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: FUSE HLDR CART 250V 20A PNL MNT. Key parameters include Color: Black, Contact Material: Copper Alloy, Contact Plating: Tin, Current Rating: 20A, and DC Rated Voltage: 250V. 03453LS2HXL is manufactured by Littelfuse as part of their Fuses Fuse Holders product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Littelfuse
- Category
- Fuses Fuse Holders
Ask AI Assistant
Ask questions about 03453LS2HXL specifications
Click to ask a quick question:
Parameters
| Color | Black |
| Contact Material | Copper Alloy |
| Contact Plating | Tin |
| Current Rating | 20A |
| DC Rated Voltage | 250V |
| Flammability Rating | UL94 V-0 |
| Fuse Current | 20A |
| Fuse Size | 0.25 Dia x 1.26 L (6.35mm x 32mm) |
| Illumination Type | Illuminated |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Panel |
| Number of Circuits | 1 |
| Number of Poles | 1 |
| Package Quantity | 100 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| RoHS | Compliant |
| Series | 345 |
| Termination | Quick Connect |
| Voltage | 250V |
| Voltage Rating | 250V |
| Voltage Rating (AC) | 250V |
