03453LF8H
Illuminated, 1-pole, 1-circuit fuse holder for 6.35mm x 32mm fuses, rated for 250V and 20A. Features copper alloy contacts with tin plating, quick connect termination, and panel mount design. Operates within a temperature range of -40°C to 85°C.
Similar Components
03450623HX020
ACS SHOCK-SAFE FUSEHLDR KNOB ASSY
155303A
This 32V 20A holder-mounted fuse features illumination and operates between -40°C and 85°C. The fuse is rated for 100 pieces per package. It is part of the 155 series from Littelfuse.
0LEB0AJSX
In-Line Watertight Fuse Holder
39602500440
The TE5 125V 250mA Radial Lead Free Fuse is a through hole mounted radial lead fuse with a maximum operating temperature of 85°C and a minimum operating temperature of -40°C. It has a voltage rating of 125V AC and a current rating of 250mA. The fuse has a power dissipation of 90mW and is compliant with RoHS regulations. It is packaged in bulk quantities of 1400 and has a flammability rating of UL94 V-0.
39805000000
The TE5 398 fuse is a radial lead free through hole fuse with a voltage rating of 65V and a current rating of 500mA. It has a maximum operating temperature of 85°C and a minimum operating temperature of -40°C. The fuse is packaged in a tape and reel with 1400 pieces per reel. It meets the UL94 V-0 flammability rating and is lead free.
SMAJ12A
Unidirectional TVS Diode for surge suppression, featuring a 12V DC rated voltage and 13.3V reverse breakdown voltage. This surface mount component, housed in a DO-214AC package, offers a 19.9V clamping voltage and a peak pulse current of 20.1A. With a maximum power dissipation of 400W and a leakage current of 1uA, it operates across a wide temperature range from -65°C to 150°C.
About 03453LF8H

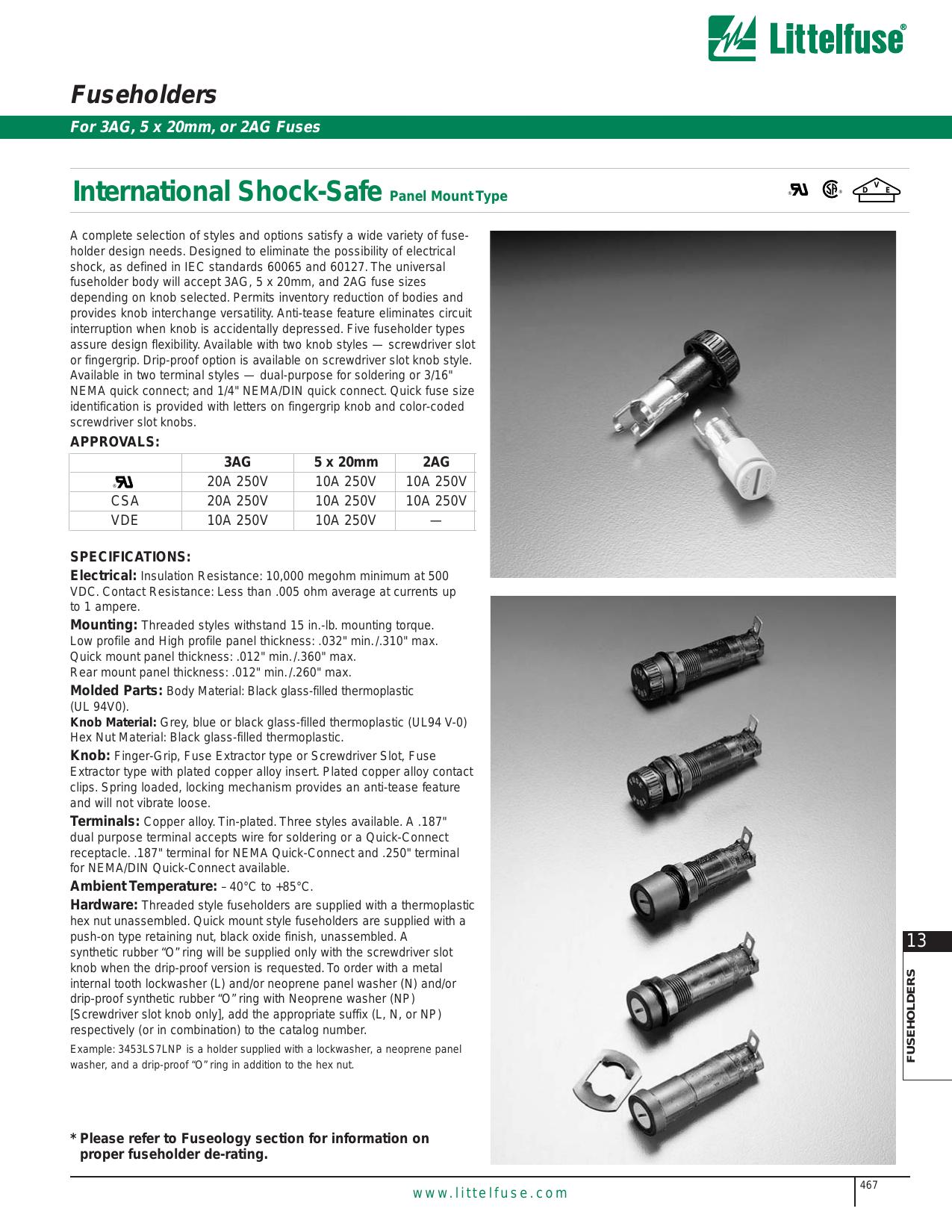

The Littelfuse 03453LF8H Semiconductors datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: Illuminated, 1-pole, 1-circuit fuse holder for 6.35mm x 32mm fuses, rated for 250V and 20A. Features copper alloy contacts with tin plating, quick connect termination, and panel mount design. Operates within a temperature range of -40°C to 85°C.. Key parameters include Color: Black, Contact Material: Copper Alloy, Contact Plating: Tin, Current Rating: 20A, and DC Rated Voltage: 250V. 03453LF8H is manufactured by Littelfuse as part of their Semiconductors product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Littelfuse
- Category
- Semiconductors
Ask AI Assistant
Ask questions about 03453LF8H specifications
Click to ask a quick question:
Parameters
| Color | Black |
| Contact Material | Copper Alloy |
| Contact Plating | Tin |
| Current Rating | 20A |
| DC Rated Voltage | 250V |
| Diameter | 15.3mm |
| Fuse Current | 20A |
| Fuse Size | 0.25 Dia x 1.26 L (6.35mm x 32mm) |
| Illumination Type | Illuminated |
| Lead Free | Lead Free |
| Length | 50.8mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Panel |
| Number of Circuits | 1 |
| Number of Poles | 1 |
| Package Quantity | 100 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| RoHS | Compliant |
| Series | 345 |
| Termination | Quick Connect |
| Voltage | 250V |
| Voltage Rating | 250V |
| Voltage Rating (AC) | 250V |
