03420028H
Panel mount fuse holder for 1/4" Dia x 1-1/4" L fuses, rated for 250V and 20A. Features a thermoplastic body, brass contacts with tin plating, and quick connect termination. Operates within a temperature range of -40°C to 85°C and boasts a UL94 V-0 flammability rating. Illuminated design for enhanced visibility.
Similar Components
SMAJ20A
Unidirectional TVS Diode, DO-214AC package, offering 400W peak pulse power and 12.3A peak pulse current. Features a 20V reverse standoff voltage, 22.2V minimum breakdown voltage, and 32.4V clamping voltage. Operates across a -65°C to 150°C temperature range with low 1uA leakage current. Surface mount design with SMD/SMT termination, lead-free and RoHS compliant.
37400630000
The TR5 374 fuse is a thermoplastic radial fuse with a current rating of 63mA and a voltage rating of 250V. It has a maximum operating temperature of 85°C and a minimum operating temperature of -40°C. The fuse is lead free and RoHS compliant, with a flammability rating of UL94 V-0. It is available in a package quantity of 1000 and is packaged in tape and reel. The fuse has a power dissipation of 50mW and is approved by UL and CSA.
39703500440
Fuse Subminiature 0.35A 125V Radial 8.5 X 8mm Bulk UL
SMBJ48CA
Bidirectional TVS Diode, 48V DC rated voltage, 53.3V minimum breakdown voltage, and 77.4V clamping voltage. Features 600W peak pulse power and 7.8A peak pulse current. Surface mount DO-214AA package with a maximum operating temperature of 150°C. RoHS compliant with 1uA leakage current.
38211600410
The TR5 382 fuse is a radial through hole fuse with a current rating of 1.6A and a voltage rating of 250V. It has a maximum operating temperature of 85°C and a minimum operating temperature of -40°C. The fuse is packaged in a bulk quantity of 1000 and is compliant with RoHS regulations. It has a flammability rating of UL94 V-0 and is lead free.
37401000410
The TR5 374 250V 100mA time delay fuse is a radial leaded fuse with a current rating of 100mA and a voltage rating of 250V AC. It has a maximum operating temperature of 85°C and a minimum operating temperature of -40°C. The fuse is packaged in a bulk quantity of 1000 units and is compliant with RoHS regulations. It has a flammability rating of UL94 V-0 and is lead free.

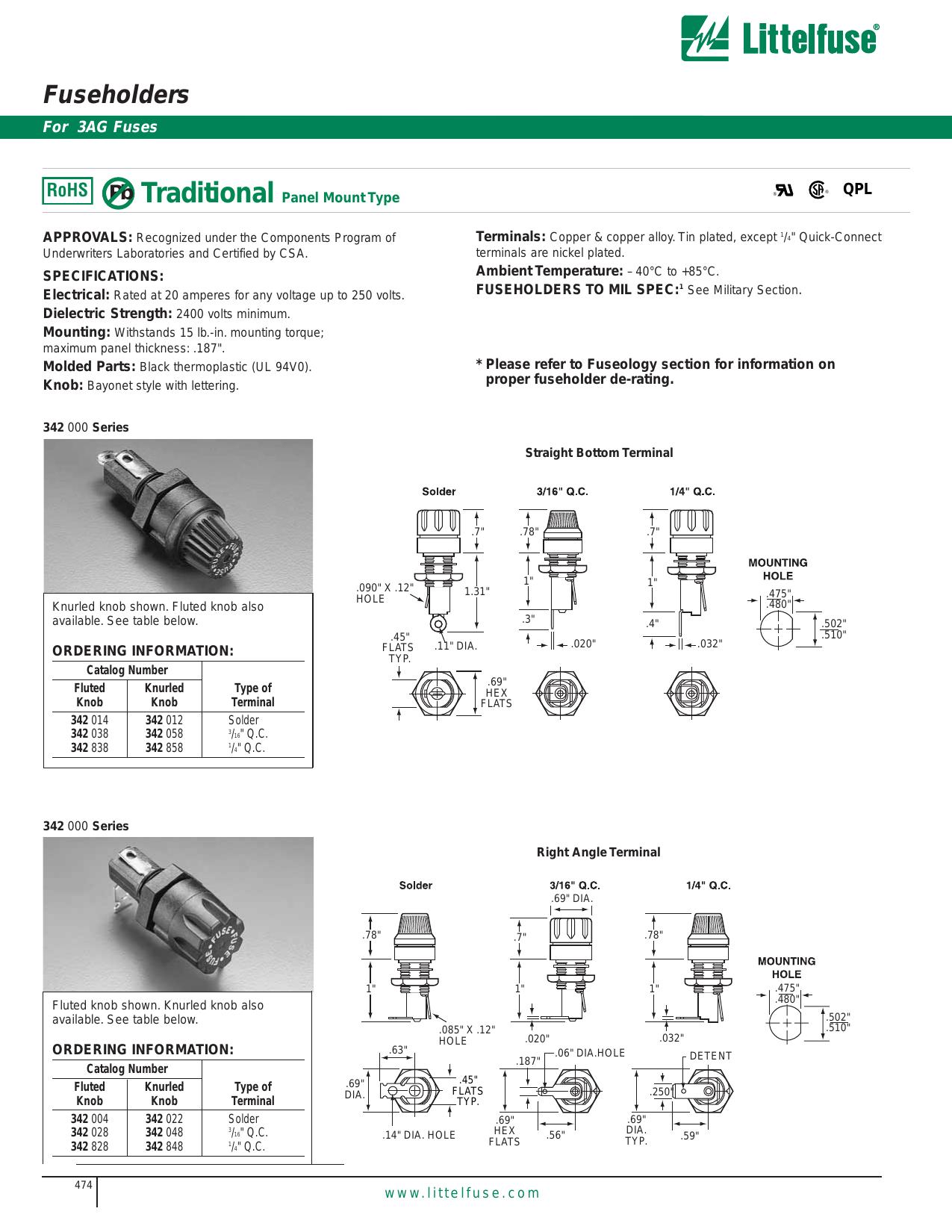

About 03420028H
The Littelfuse 03420028H Semiconductors datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: Panel mount fuse holder for 1/4" Dia x 1-1/4" L fuses, rated for 250V and 20A. Features a thermoplastic body, brass contacts with tin plating, and quick connect termination. Operates within a temperature range of -40°C to 85°C and boasts a UL94 V-0 flammability rating. Illuminated design for enhanced visibility.. Key parameters include Body Material: Thermoplastic, Color: Black, Contact Material: Brass, Contact Plating: Tin, and Current Rating: 20A. 03420028H is manufactured by Littelfuse as part of their Semiconductors product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Littelfuse
- Category
- Semiconductors
Ask AI Assistant
Ask questions about 03420028H specifications
Click to ask a quick question:
Parameters
| Body Material | Thermoplastic |
| Color | Black |
| Contact Material | Brass |
| Contact Plating | Tin |
| Current Rating | 20A |
| DC Rated Voltage | 250V |
| Depth | 17.53mm |
| Flammability Rating | UL94 V-0 |
| Fuse Current | 20A |
| Fuse Size | 1/4" Dia x 1-1/4" L (6.35mm x 31.8mm) |
| Illumination Type | Illuminated |
| Lead Free | Lead Free |
| Length | 20.23mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Panel |
| Number of Circuits | 1 |
| Number of Poles | 1 |
| Package Quantity | 100 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| RoHS | Compliant |
| Series | 342 |
| Termination | Quick Connect |
| Voltage | 250V |
| Voltage Rating | 250V |
| Voltage Rating (AC) | 250V |
